ACOUSTICAL
FEATURES AS PREDICTORS FOR PROMINENCE IN READ ALOUD DUTCH SENTENCES USED IN
ANN’S
Barbertje
M. Streefkerk*, Louis C. W. Pols* and Louis F. M. ten Bosch**
*Institute
of Phonetic Sciences Amsterdam (IFA) / IFOTT
**Lernout
& Hauspie Speech Products N. V., Belgium
ABSTRACT
In
this paper we present several acoustical features, which are used as predictors
for prominence. A set of 1244 sentences from 273 different speakers is selected
from the Dutch Polyphone Corpus. Via listening experiments the subjective
prominence markers are obtained. Several acoustical features concerning F
0,
energy and duration are derived and used as predictors for prominence. The
sentences are divided in a test and a training set, to test and train neural
networks with different topologies and different input features. The first
results show that a classification of prominent and non-prominent words is
possible with 82.1% correct for an independent test set.
1. INTRODUCTION
Knowing
the relevant features for perceived prominence can be useful in several speech
technology applications. For example in speech synthesis, where words can be
realized with an accent-lending pitch movement, it should be the next step to
introduce different degrees of prominence. Knowing more about the realization
of various degrees of prominence can be helpful to realize more natural speech.
Also in speech recognition the optimal features of prominence can help to
disambiguate sentences.
The
concept of prominence is not very clearly defined, but it is obvious that it
refers to those words or syllables, which are perceived as standing out from
their environment [14]. Or to say it in other words, it refers to the
perceptual salience of a unit. In the research of Fant and Kruckenberg [4] and
Portele and Heuft [9] prominence is defined via detailed listening: each
syllable is marked with a degree of prominence on a scale from 0 to 30. So the
listener must distinguish 31 degrees of prominence, which is a very difficult,
and maybe even impossible task. We also define prominence via a listening
experiment, but just by asking naive listeners to mark the emphasized words.
The sum of all marks per word results in a prominence scale, where words with a
low degree of prominence could perhaps be interpreted as words with realized
lexical stress and words with a high degree of prominence be interpreted as
carrying sentence accent.
In
our opinion the acoustical features for prominence will not be limited to the
pitch movements only, but will also include aspects of intensity, duration and
spectral quality. The prominent words coincide with F
0
changes, and they are longer and louder than their non-prominent counterparts. F
0
change is a very important feature to detect the most prominent words, and for
this measure most of the time speaker or context normalization is not
necessary. Although some effect of vowel identity may exist, F
0
change expressed in semitones is mostly independent of intrinsic properties.
However, in the case of duration for example the vowel identity and final
lengthening are properties that substantially influence the actual duration of
the vowel and the syllable.
Research
of Sluijter [ 10] shows that duration and energy are mainly features of
realized word stress and that features concerning F
0
are used for pitch accent. In their research it turns out that also spectral
tilt is a strong correlate of realized word stress. In contrast, van
Kuijk’s work [8], which concerns acoustic differences between lexically
stressed and unstressed vowels, shows that spectral tilt is not a useful feature.
Much
is known about pitch movements for the use of speech synthesis. For example
with the IPO intonation system [5] one can evoke a very good pitch accent for
one speaker. However, the extraction in natural speech of useful features
concerning the pitch movement is a problem. In present-day speech recognition
the problem to recognize accents is an unsolved problem, yet. A first good
attempt is made by Kompe [7] and by Wightman and Ostendorf [15]. However, these
approaches are using as many features as possible to recognize sentence accent,
not yet leading to any specific knowledge about which are the most optimal
features.
2. SPEECH
MATERIAL
The
speech material we used was selected from the Dutch Polyphone corpus. This
corpus contains 12500 different sentences, each sentence was used twice, so 5
different sentences from 5000 different speakers resulting in 25000 sentences
are recorded over the telephone. All sentences were taken from Dutch newspapers
and were constructed in such a way that each set contains all phonemes of the
Dutch language at least once. The speakers were instructed to read the
sentences aloud from paper via the telephone (for more details see [3]). Since
the sentences were isolated and read aloud without context, focus could not be
determined anymore. This speech material contains speech of a lot of speakers
from different regions, different ages and different socio-economic statuses
and therefore the variability of this speech material is huge. On the one hand
this makes analyses very complex, but on the other hand this only reflects the
actual situation in several speech technology applications, particularly in
speech recognition. The acoustical analyses, as well as the prediction of
prominence based on the acoustical features, are done on a subset of 1244
sentences from this Polyphone corpus. This subset contains speech of 273
different speakers, with up to 5 different sentences spoken by one speaker.
Only few sentences are spoken more than once, by different speakers. This
subset contains 1196 different sentences, implying that 48 sentences are spoken
by more than one speaker. The total set consists of 13092 words, resulting on
average in
10.5
words
per sentence. In terms of syllables the set consists of 22496 syllables, which
is on average 18.1 syllables per sentence.
3. PRE-PROCESSING
Before
the 1244 sentences can be analysed in more detail, the prominence labels must
be derived from a listening experiment, which is described in more detail in
section 4. In order to derive various acoustical features we first of all have
to determine the phoneme and syllable boundaries within each sentence. Because
the transliteration of each sentence was available it was possible to look up
most words in a standard pronunciation lexicon (CELEX) [1]. For each sentence
an array of all phonemes that occur in that sentence was used to train an
HMM-model, with the help of my colleague Xue Wang [16], on a different subset
of 4553 sentences from 978 different speakers also taken from the Dutch
Polyphone corpus (these are not round numbers because 447 sentences were
excluded due to bad quality). The trained HMM-model was used to find the
boundaries of each phoneme in our 1244 spoken sentences. The syllable
boundaries were derived from the CELEX lexicon, but since this lexicon did not
contain all words, some syllable boundaries had to be added by hand. With the
help of the phoneme label file, a syllable label file with syllable boundaries
was created. Since we used a lexicon, the lexically stressed syllables of most
content words were also known, the lexically stressed syllables of non-content
words were also added by hand. A next and final step in pre-processing the
sentences consisted of connecting the cumulative prominence markers of the 10
listeners with the phoneme and syllable labelling. In summary the identity and
boundaries of the phonemes, the syllables with lexical stress markers, and the
boundaries of the syllables, as well as the prominence labels were available
for further acoustical analyses.
4. PROMINENCE
MARKING
In
order to derive the prominence judgements, two listening experiments were
constructed one with a subset of 500 phonetically rich sentences spoken by 100
speakers and one with another subset of 744 sentences spoken by 173 speakers.
To test how consistent the listeners were we presented the first 50 sentences
of the first subset to each listener twice (for more detail see [12]). The 550
sentences (500 + 50), of the first listening experiment as well as the 744
sentences of the second listening were presented in 4 sessions. For both
listening experiments the sentences are presented to a partly overlapping group
of 10 listeners. The sentences are presented individually in random order to
compensate for possible learning effects. In both listening experiments the 10
listeners were students from the Humanities Faculty of the University of
Amsterdam. The experiments were constructed in such a way that the written
words of each sentence were displayed on the monitor with a button underneath
each word. The listeners could click on the buttons corresponding to words
perceived as being spoken with emphasis.
In
table 1 the results of both listening experiments combined are presented. In
the second column the absolute, and in the third column the relative, numbers
of the cumulative prominence judgements of all 1244 sentences are given. In
case of the first listening experiment (with 500 sentences) the second
prominence judgements of the 50 sentences which are presented twice are
included in this table, because in the first 50 sentences a learning effect may
still prevail. The variability of the listeners is described in more detail in
[12]. It is worth pointing out that about half of the words (45.45%) are never
marked as prominent, and that 2059 (802 + 739 + 518) words, which is 15.73% of
all words, are marked as prominent by 8 or more of the listeners. Because there
are on average 10.5 words per sentence this results in 1.49 prominent words per
sentence.
The
acquired prominence markers can be used in several ways. First, the prominent
and the non-prominent words can be selected: the non-prominent words are the
words which are never marked as prominent, and the prominent words are the
words which are judged by 8 or more of the listeners. The prominence judgements
can also interpreted on a prominence scale from 0 to 10. Since there is
variability between listeners, it cannot be expected that the scale from 0 to
10 represent 11 separate classes. From a lexical analysis [6] of a subset of
these sentences it can be expected that 4 classes might be a good compromise.
Words
with a low degree of prominence could perhaps be interpreted as words with
realized lexical stress. The question then is, do words with prominence
judgements at the word level receive also markers when the task implies marking
the prominent
syllables.
Such a comparison is presented in Streefkerk et. al [11]. It is indeed true
that if there is a marker at the word level this always coincides with a marker
at the syllable level.
Value
|
Freq.
words
|
Percentage
|
0
|
5950
|
45.45
|
1
|
1161
|
8.87
|
2
|
679
|
5.19
|
3
|
595
|
4.54
|
4
|
586
|
4.48
|
5
|
603
|
4.61
|
6
|
645
|
4.93
|
7
|
813
|
6.21
|
8
|
802
|
6.13
|
9
|
739
|
5.64
|
10
|
518
|
3.96
|
Total
|
13092
|
100
|
Table
1:
In this table the combined cumulative prominence judgements of both listening
experiments are shown. For example in column ‘Freq. words’ the
number 802 means that so many words have been marked by 8 listeners as being
prominent.
5. ACOUSTICAL
FEATURES
The
set of 1244 sentences is involved in various acoustical analyses as well as in
prominence classifications of the neural networks. As described in the
pre-processing section the prominence labels of each word are connected to the
speech material, as well as to the phoneme and syllable boundaries. As a first
step towards finding optimal features for the prediction of prominence, the
following raw features are derived:

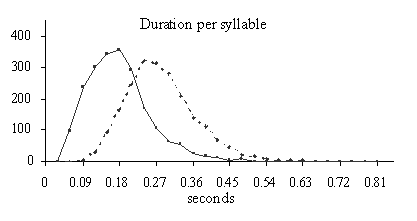

- Duration
per syllable in seconds

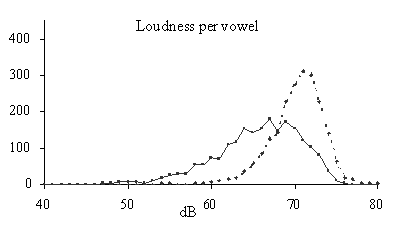

- Intensity
per vowel in dB

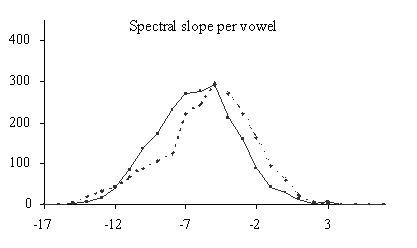

- Spectral
slope per vowel

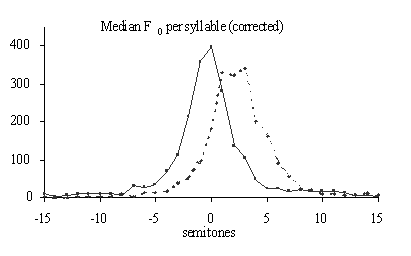

- Median
F
0
per syllable in semitones

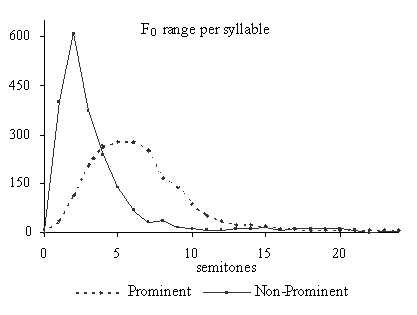

- F0
range
per syllable in semitones
Since
the phonemes of each sentence are automatically segmented, the duration of each
segment is determined by the HMM-recogniser. The minimum duration of each vowel
is 30 ms, because accuracy of each frame was fixed to 10 ms and minimally three
states per vowel must be visited. The intensity, spectral slope, and F
0
measurements were performed by using the software package PRAAT [2]. The
intensity was calculated for each vowel. The spectral slope of each vowel was
estimated as the slope of the regression line of lower and higher octave bands
of a long-term average spectrum. In case of the features concerning pitch,
first of all the F
0-contour
of the whole sentence was determined and automatically smoothed. On the
resulting pitch curve the F
0
range per syllable, the median F
0-value
per syllable and the median F
0-value
of the whole sentence was measured.
All
features, except median F
0,
are raw features. So in this paper the duration per syllable is not yet
corrected for intrinsic vowel length or final lengthening. Also the local
speaking rate is not yet taken into account. In case of intensity, this is not
yet corrected for the different vowel strengths. Since the distribution of the
intensity of all vowels corrected for the overall intensity per sentence shows
no noticeable difference with the non-corrected distribution, only the
uncorrected data are presented in this paper. However, concerning the median F
0-value
per syllable, the overall median F
0-value
of each sentence is subtracted. Because otherwise all syllables coming from a
sentence spoken by a female, would be classified as prominent, since women have
a higher overall voice.
In
figure 1 the histograms of the acoustical features of a subset of the
non-prominent (no prominent marks) and the prominent (8 or more prominent
marks) words are plotted. In the case of more-than-one-syllable-words these
distributions show the values of the lexically stressed syllable. The
distributions of the prominent syllables are plotted in the graphs as
dotted
lines
.
An equal number of non-prominent words are randomly selected, and the
distributions of the acoustical features for these words are plotted as
continuous
lines
in the graphs. For all acoustical features it is true that the prominent
syllables show distributions which are more shifted to the right. So the
tendency is indeed that prominent syllables are longer, are realized with more
intensity, have a slightly flatter spectral slope, have a higher median F
0,
and are realized with a greater range in F
0
than their non-prominent counterparts. In Streefkerk et al [13] it is shown
that there is a positive relation between the prominence scale from 0 to 10 and
the acoustical features duration and intensity per vowel, and the F
0
range values of syllables. From the distributions presented in figure 1 it can
be deducted that the spectral slope is the worst predictor for prominence,
because there is a substantial area of overlap between the prominent and the
non-prominent distributions.
6. CLASSIFICATION
WITH FEED FOREWARD NETWORKS
The
raw acoustical features, described in section 4 are not only used to analyse
various distributions concerning prominent and non-prominent words, but are
also used as input features for several ANN’s (artificial neural network)
to predict prominence. As a first step features belonging to the prominent
words and to the same amount of randomly selected non-prominent words are taken
from the 1244 sentences, and divided in a test and atraining sets. To get to
know more about the most optimal topology we need, and about the input features
which are most optimal for the prediction of prominence, we trained and tested
all input combinations and all numbers of nodes in the hidden layer from 3 to
6. In total 31 combinations of input features and 124 feed forward nets were
trained with 125 iterations for those nets with 3 and 4 nodes and with 200
iterations with 5 and 6 nodes in the hidden layer. The best result (84.2%
correct on the training set and 82.1% correct for the independent test set) was
reached with all input features, duration, F
0
range, and median F
0
per syllable, and intensity and spectral slope per vowel. Leaving out spectral
slope as input feature, lowered the percentage correct classification not
substantially (83.5% correct classification for the training set and 81.8% for
the test set). So in further research we will not concentrate on the spectral
slope of each vowel.
At
the conference more data will be presented also on different output units,
namely a classification in terms of the prominence scale from 0 to 10, as well
as the re-scaled prominence values from 0 to 3.
7. CONCLUSION
Concluding
it can be said that duration per syllable, intensity per vowel, median F
0
per syllable corrected for the median F
0
per sentence, and F
0
range per syllable are promising features as predictors for prominence. The
spectral slope per vowel thus not seem to be a predictive feature for
prominence. The same was found in the research of van Kuijk and Boves [8]. The
plotted distributions of spectral slope for prominent and non-prominent words
confirm the bad distinctive quality of this feature. A combination of all 5
features leads to a recognition rate of 84.2% correct for the test set and
82.1% for the training set. We will study in future research if possible
normalisation of duration and intensity leads to higher recognition rates. Also F
0
features relative to their environment will be tested in future, and more
sophisticated ANN’s will be trained.
8. REFERENCES
[1]
Baayen, R. H., Piepenbock, R. and van Rijn, H., 1993. The CELEX lexical
database (CD-ROM). Linguistic Data Consortium, University of Pennsylvania,
Philadelphia, PA.
[2]
Boersma, P. and Weenink, D., 1996. Praat, a system for doing phonetics by the
computer. Version 3.4.,
Report
132 of the Institute of Phonetic Sciences Amsterdam
,
http://fonsg3.hum.uva.nl/praat/.
[3]
Damhuis, M., Boogaart, T., in ‘t Veld, C., Versteijlen, M., Schelvis, W.,
Bos, L. and Boves, L., 1994. Creation and analysis of the Dutch Polyphone
corpus.
Proc.
ICSLP-94
,
Yokohama, 1803- 1806.
[4]
Fant G. and Kruckenberg A., 1989. Preliminaries to the study of Swedish prose
reading and reading style.
STL-QPSR
2, 1-83.
[5]
‘t Hart J., Collier R. and Cohen A., 1990.
A
perceptual study of intonation
.
Cambridge, University Press.
[6]
Helsloot K. and Streefkerk B. M., 1998. Perceived prominence and the
metrical-prosodic structure of Dutch sentences.
Proc.
of the Institute of Phonetic Sciences of the University of Amsterdam
,
22, 97-111.
[7]
Kompe, R., 1997.
Prosody
in Speech Understanding Systems
,
Lecture Notes for Artificial Intelligence. Springer-Verlag, Berlin.
[8]
Kuijk, van D. and Boves, L. 1999. Acoustic characteristics of lexical stress in
continuous telephone speech.
Speech
Communication,
27, 95-111.
[9]
Portele, T. and Heuft, B., 1997. Towards a prominence-based synthesis system.
Speech
Communication
,
21, 61-71,
[10]
Sluijter, A. M. C. and Heuven van , V. J., 1996. Spectral balance as an
acoustic correlate of linguistic stress
.
J. Acoust. Soc. Amer
.
100, 2471-2485.
[11]
Streefkerk, B. M., Pols L.C.W. and ten Bosch L. F. M., 1997. Prominence in read
aloud sentences, as marked by listeners and classified automatically.
Proc.
of the Institute of Phonetic Sciences of the University of Amsterdam
,
21, 101-116
.
[12]
Streefkerk, B. M. and Pols, L. C. W., 1998. Prominence in read aloud Dutch
sentences as marked by naive listeners.
Tagungsband
KONVENS-98
,
Frankfurt a.M., 201-205.
[13]
Streefkerk, B. M., Pols, L. C. W. and ten Bosch, L. F. M., 1998. Automatic
detection of Prominence (as defined by listeners' judgments) in read aloud
Dutch sentences.
Proc.
of ICSLP-98
,
Sydney, Vol. 3, 683-687.
[14]
Terken, J., 1991. Fundamental frequency and perceived prominence of accented
syllables.
J.
Acoust. Soc. Am
.,
89, 1768-1776.
[15]
Wightman, C. W. and Ostendorf, M., 1994. Automatic labeling of prosodic
patterns.
IEEE
Transactions on Speech and Audio Processing
,
2, 469-481.
[16]
Wang, X., 1997. Incorporating knowledge on segmental duration in HMM-based
continuous speech recognition, Ph.D. Thesis, University of Amsterdam.
